The Vectron® Tube primitive creates a tube shaped Vectron object (figure 1). By default the shape is square until the Round Base modifier parameter is set to 1.


Tube Primitive

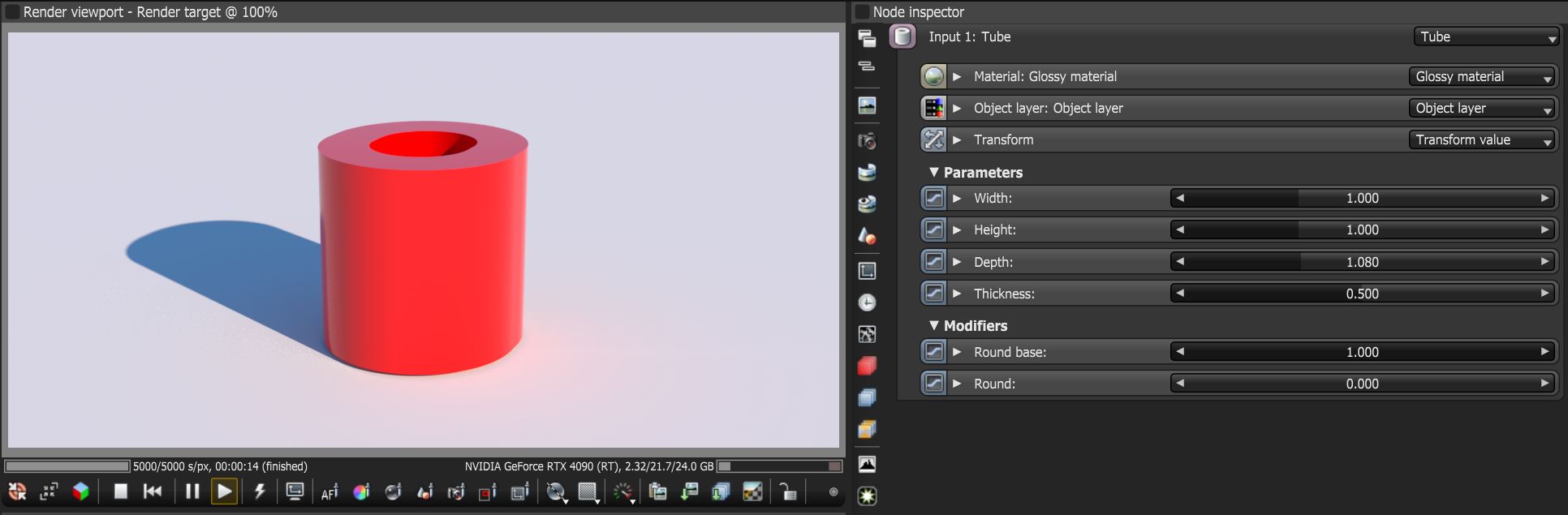

Figure 1: The Tube Vectron object with the Round Base parameter set to 1


Tube Parameters

Material - The Material input. See the Materials topic in this manual for more details.

Object Layer - The Object Layer input. See the Object Layer Node topic under Rendering for details.

Transform - Provides values for translation, rotation, and scale.

Parameters

Width - The total width of the tube. To maintain a perfect circular shape, this parameter must match the Depth parameter.

Height - The height of the tube.

Depth - The total depth of the tube. To maintain a perfect circular shape, this parameter must match the Width parameter.

Thickness - Determines the inner radius of the tube, adjusting the overall thickness.

Modifiers

Round Base- Values closer to 1 will make the tube more round.

Round - Rounds off the top and bottom edges of the tube.
