Texture

The Texture blend node can be used to add an imported texture map or any of the procedural Octane textures to the compositing node tree (figure 1).

Texture Blend Node

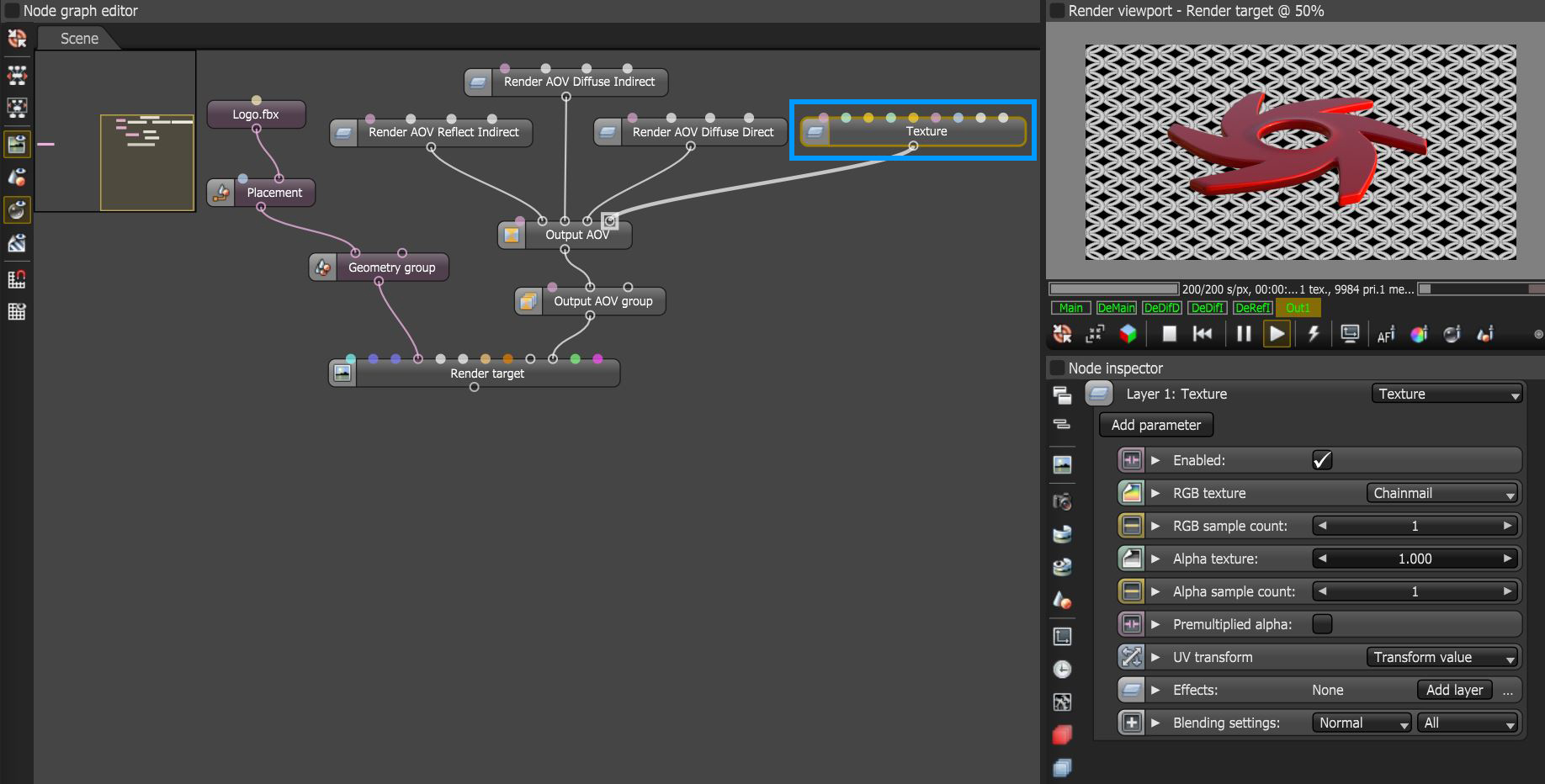

Figure 1: The Texture blend node used to add a procedural texture for the background in the compositing node tree

Enabled - Determines whether the Texture node is active or not.

RGB Texture - Specifies the texture to be used which can be imported or procedural.

RGB Sample Count - Determines the number of times to sample the RGB texture for each pixel.

Alpha Texture - Specifes the texture to be used for opacity, the default is a greyscale color.

Alpha Sample Count - Determines the number of times to sample the Alpha texture for each pixel.

Premultiply Alpha - Determines whether the RGB channel in the image has been premultiplied by the alpha channel.

UV Transform - Provides transformation parameters for the RGB texture.

Effects - Provides the ability to stack additional Output AOV nodes to this node using blending settings.

Blending Settings - Provides typical blending options used in the compositing process.
