IES Lighting

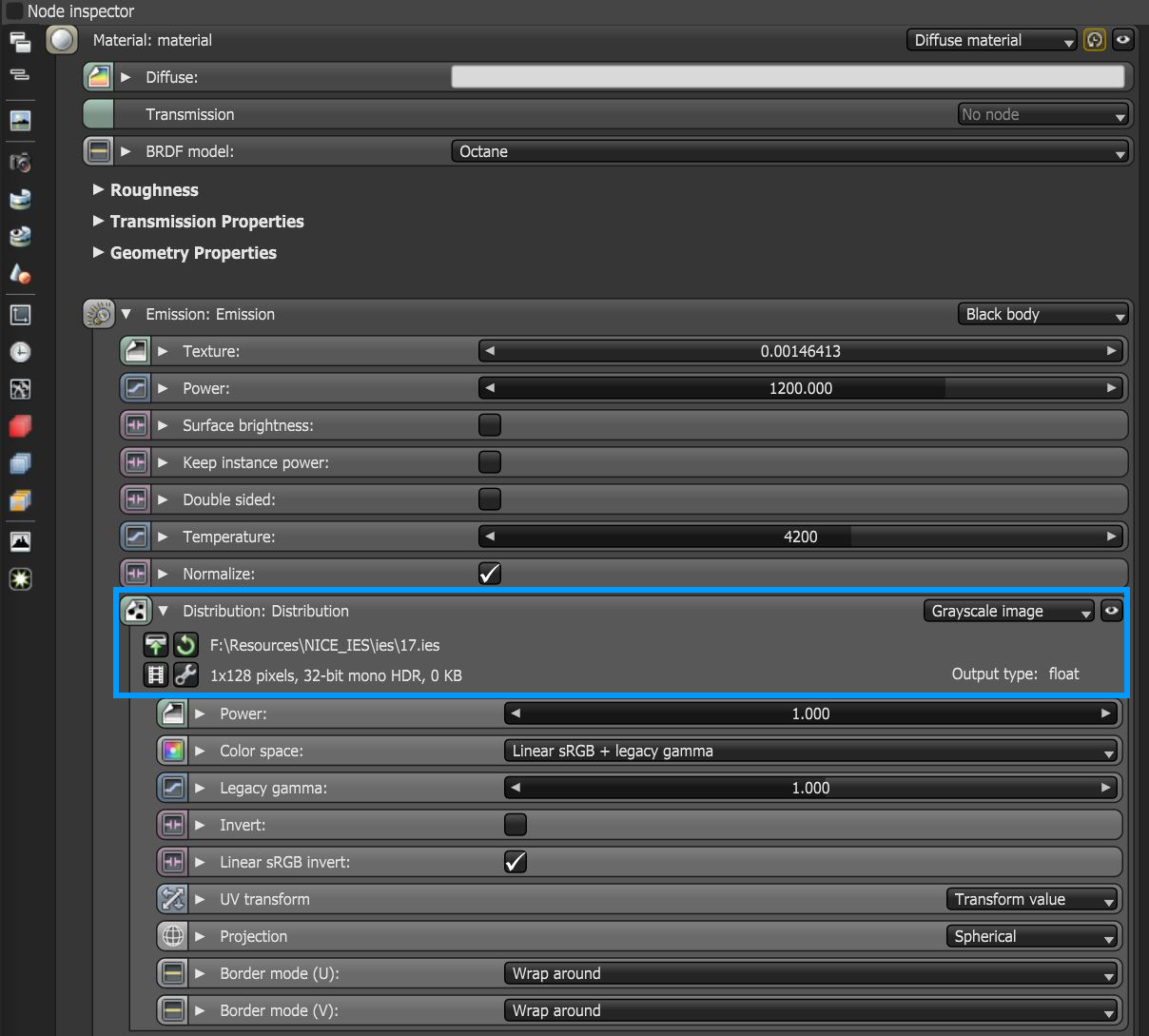

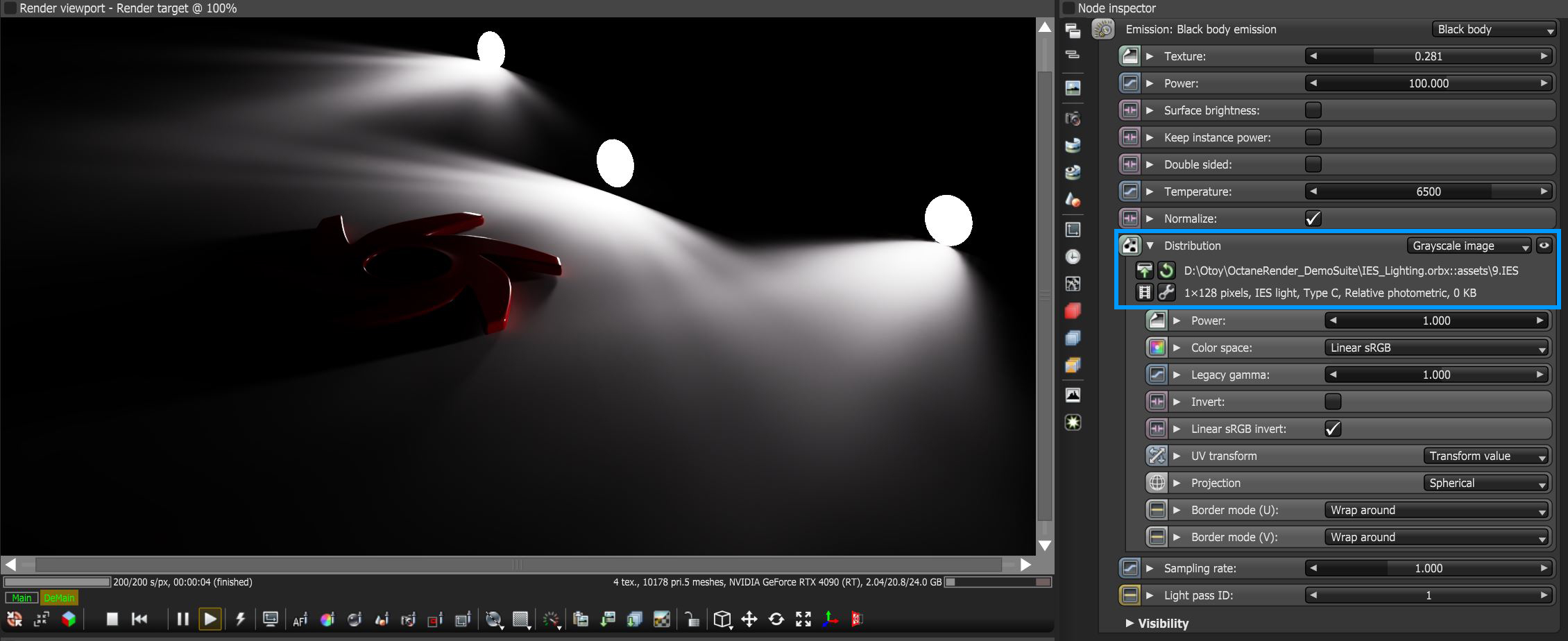

An IES light profile can be added to any light source using the Distribution input pin on an Emission node (figure 1).
|
|
IES Distribution
|
Figure 1: Adding an IES light profile to an Emission node

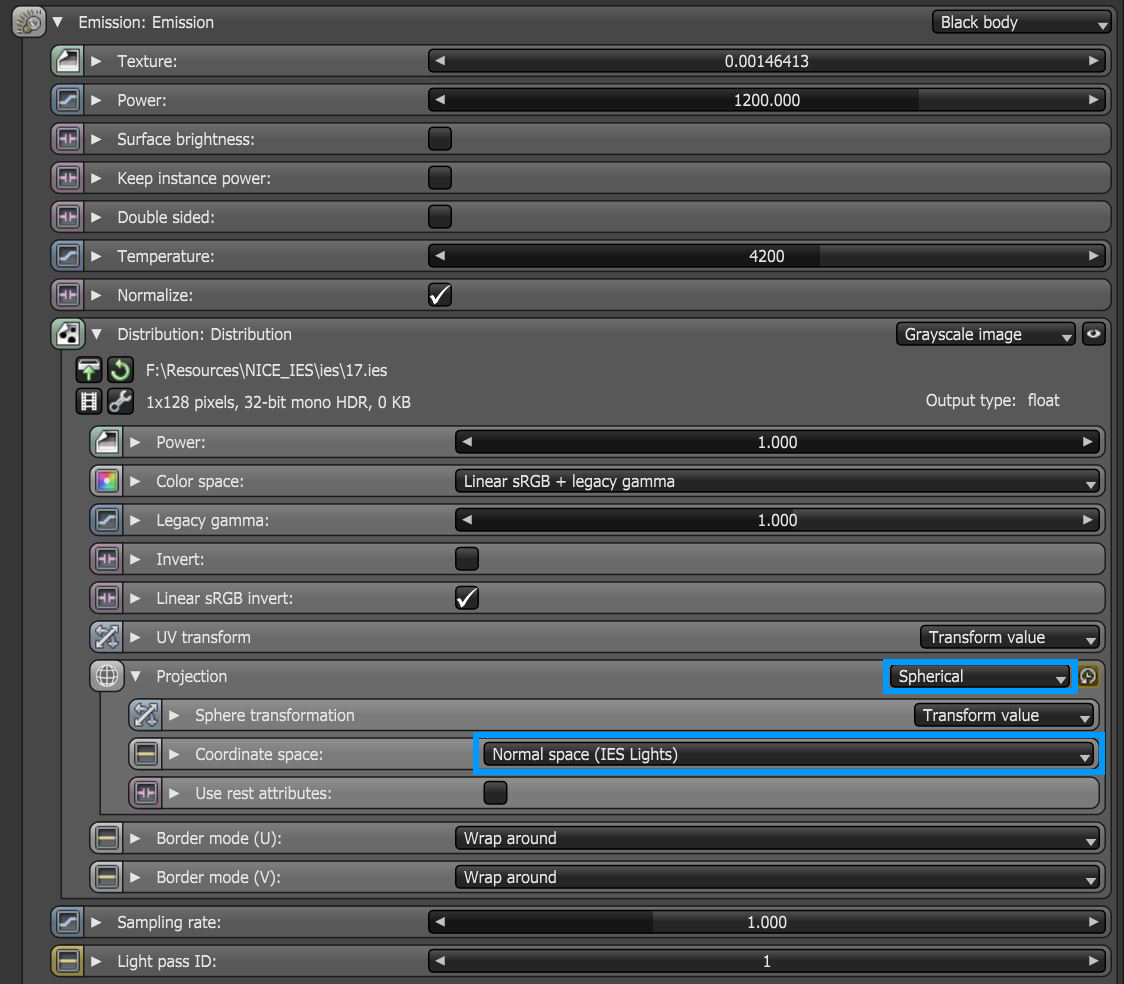

The imported IES light profile should have it's Projection type set to Spherical and it's Coordinate Space set to Normal Space (IES Lights) in the Distribution parameters (figure 2).
|
|
IES Distribution
|
Figure 2: Setting the Projection and Coordinate Space for an IES light profile
