The Digits procedural texture produces digital numbers specified in the Number parameter for the texture node (figure 1).


Digits

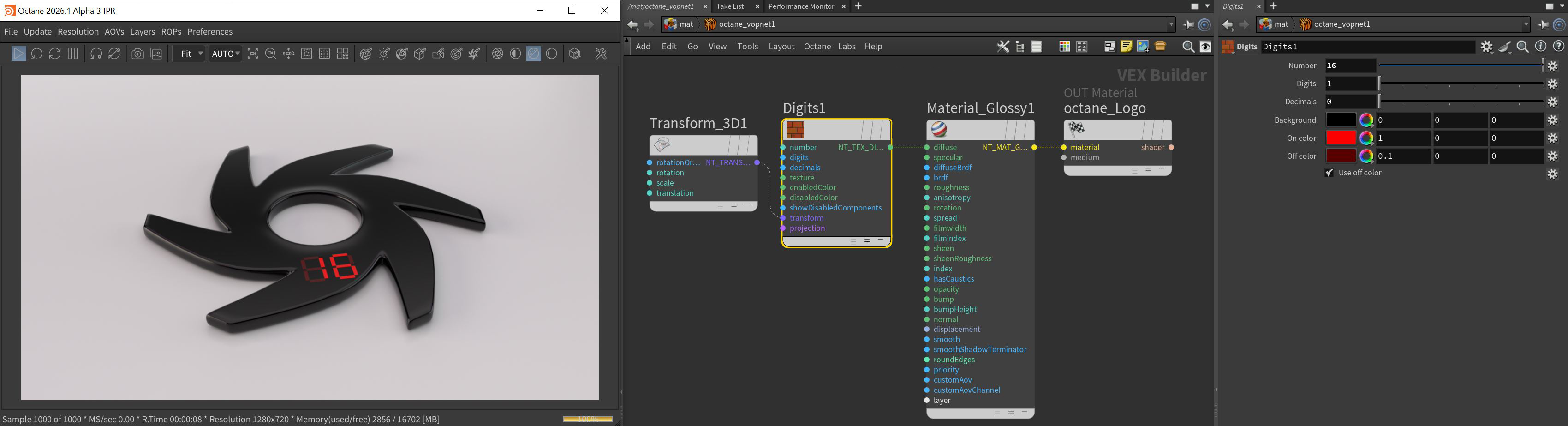

Figure 1: The Digits node and it's associated parameters


Digits Parameters

Number - Sets the digital value to be displayed.

Digits - Specifies the number of digits to be displayed.

Decimals - Adds decimal places to the displayed digits.

Background - Sets the color behind the digits.

On Color - The primary color for the digits.

Off Color - The color for the disabled component on each digit.

Use Off Color - When active, the Off Color will be displayed.

Transform Pin - Positions, scales, and rotates the surface texture.

Projection Pin- Sets how the texture projects onto the surface.
