The Smooth Voronoi Contours texture node generates a Voronoi pattern that is typically used for fractured shapes, however, this node generates a smoothed version of a Voronoi fracture (figure 2).

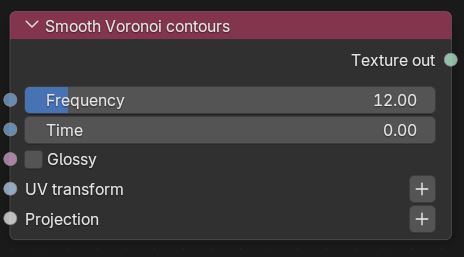

Figure 1: Smooth Voronoi contours Node


Figure 2: The Smooth Voronoi Contours node example

Parameters

    • Frequency - Determines the base color underlying the other iridescent colors.
    • Time - The animation time stamp used to pan the textures across a surface.
    • Glossy - Adjusts the color swatches to provide a glossy-friendly Voronoi pattern.
    • UV Transform - Positions, scales, and rotates the surface texture.
    • Projection - Sets how the texture projects onto the surface.
