Cylinder
The Cylinder primitive creates a cylindrically shaped Vectron object (figure 2).
|
|
Cylinder
|

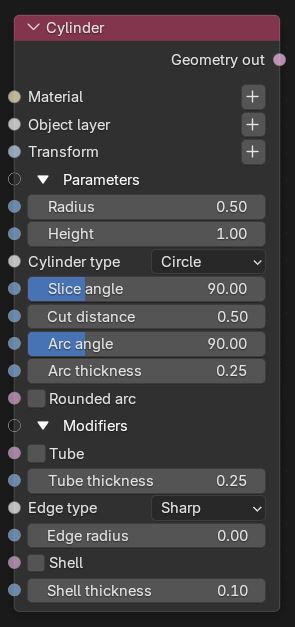

Figure 1: Cylinder Node
|
|
Cylinder
|
Figure 2: The Cylinder Vectron primitive
Cylinder Parameters
Radius - Determines the radius of the cylinder.
Height - Determines the height of the cylinder.
Cylinder Type - Detertmines the shape of the cylinder.
Slice Angle - Determines the slice angle when the Cylinder Type is set to Slice.
Cut Distance - Specifies the cut distance when the Cylinder Type is set to Cut.
Arc Angle - Determines the arc angle when the Cylinder Type is set to Arc.
Arc Thickness - Specifies the thickness of the arc shape when the Cylinder Type is set to Arc.
Rounded Arc - Rounds the edges of the arc angle when the Cylinder Type is set to Arc.
Tube - Makes a tube shape with any of the Cylinder Types.
Tube Thickness - Determines the tube thickness.
Edge Type - Specifies if the edge should be sharp, fillet, or chamfered.
Edge Radius - Determines the radius of the edge type.
Shell - Makes the shape a shell when the surface has an open edge such as in the case of subtracting one vectron shape from another.
Shell Thickness - Determines the thickness of the shell.
