OctaneRender® adapts the OBJ and Alembic standards for particles to import and export particle sizes. These parameter sets the size for particles imported if OctaneRender can not locate the size or dimension data of the particles upon importing the particle geometry (figure 1).


Sphere Attributes

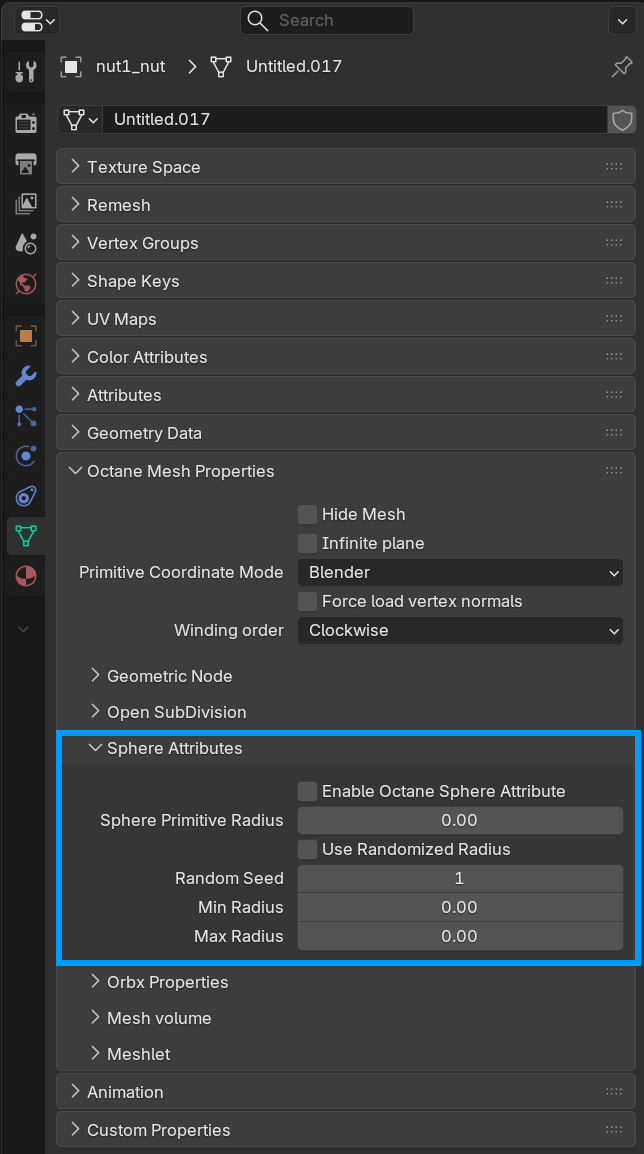

Figure 1: Sphere Attributes


Sphere Attributes

  • Enable Octane Sphere Attribute - Use color and float attributes with sphere primitives which adds on top of the current attribute support for triangles.
  • Sphere Primitive Radius - The radius of the sphere primitive.
  • Use Randomized Radius - Enable to use the randomized radius.
  • Random Seed - The random seed that used for radius.
  • Min Radius - The min randomized radius of the sphere primitive.
  • Max Radius - The max randomized radius of the sphere primitive.
