Octane Projection nodes can add or edit existing UV mapping coordinates on a texture map. These nodes do not alter the actual 3D model's UV coordinates - they simply apply a new UV projection to its connected texture.

    • Box Projection
    • Color to UVW Projection
    • Cylindrical Projection
    • Distorted mesh UV Projection
    • Instance position Projection
    • MatCap Projection
    • Mesh UV projection
    • OSL delayed UV Projection
    • OSL projection
    • Perspective Projection
    • Sample pos. to UV Projection
    • Spherical Projection
    • Triplanar Projection
    • XYZ to UVW Projection

Utility

    • Projection switch

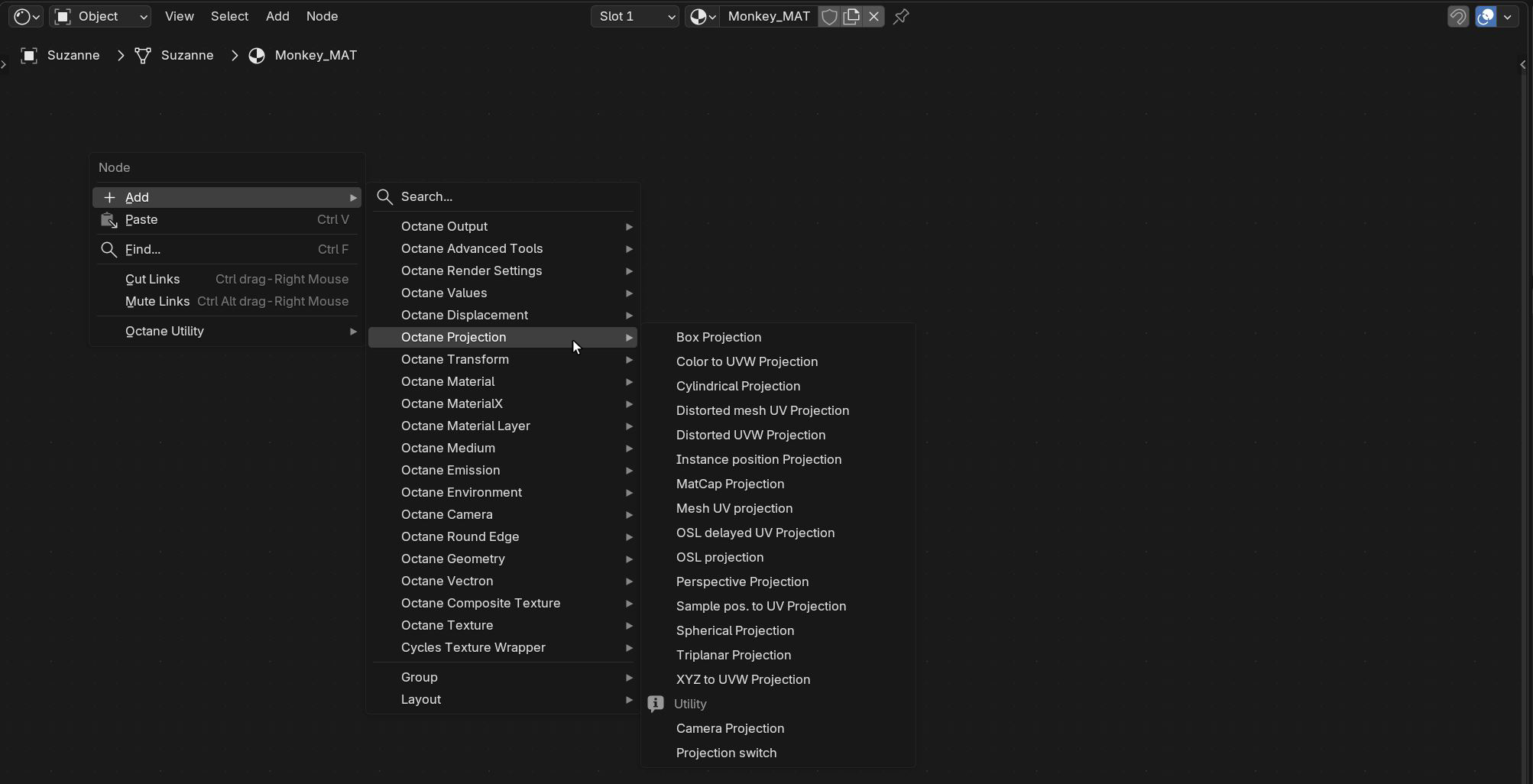

Figure 1: Octane Projection Node List




Figure 2: Connecting a Projection to a Texture node
