Linear Array
The Linear Array node generates a linear array from a Vectron object. In figure 2, A Vectron circular array is used as input for a linear array along the Y axis.
|
|
Linear Array
|

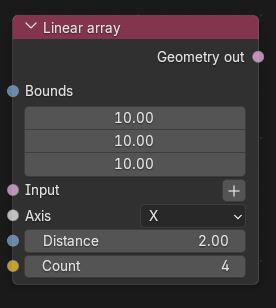

Figure 1: Linear Array Node
|
|
Linear Array
|
Figure 2: A linear array of an OSL Vectron circular array object
Linear Array Parameters
Bounds - Determines the bounds of the Vectron geometry.
Input - The Vectron object to be used for the array.
Axis - Specifies the axis for the object array.
Distance - Determines the distance between the array elements.
Count - Specifies the number of array objects.
