The Stripes texture node generates a stripe pattern consisting of a base color and two stripe color parameters (figure 1).


Stripes

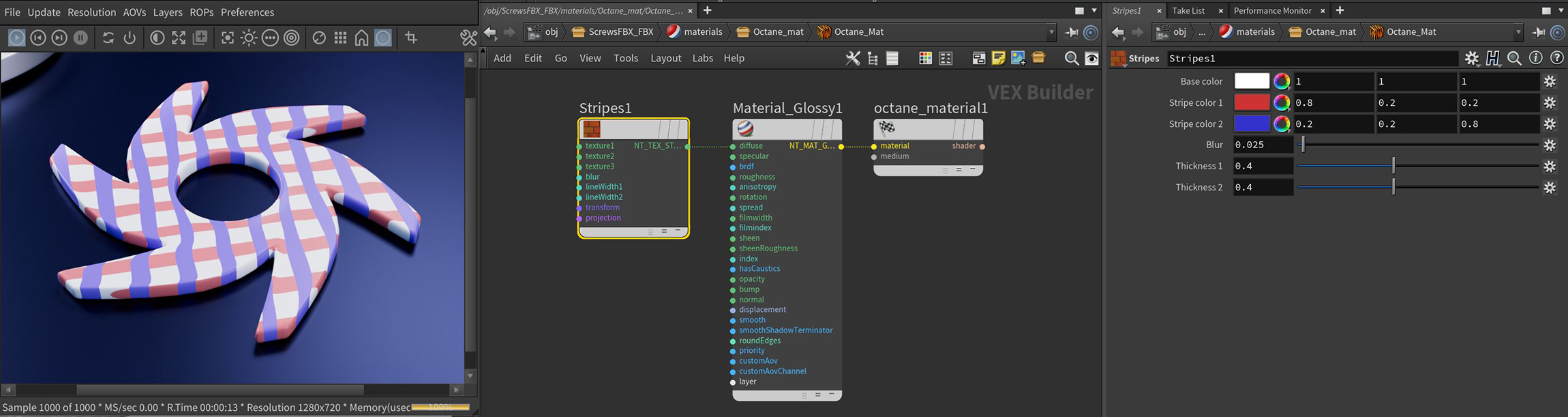

Figure 1: The Stripes node and it's associated parameters


Stripes Parameters

Base Color - Determines the base color underlying the other stripe colors.

Stripe Color 1 - Determines the color of the vertical stripe.

Stripe Color 2 - Determines the color of the horizontal stripe.

Blur - Softens the edges of the stripes.

Thickness 1 - Determine the width of the vertical stripe.

Thickness 2 - Determines the width of the horizontal stripe.

Transform Pin - Positions, scales, and rotates the surface texture.

Projection Pin - Sets how the texture projects onto the surface.
