Values
The nodes contained in the Values category can be used for creation and manipulation of scene data such as strings, integers, floats, etc. (Figure 1).
Value Nodes |

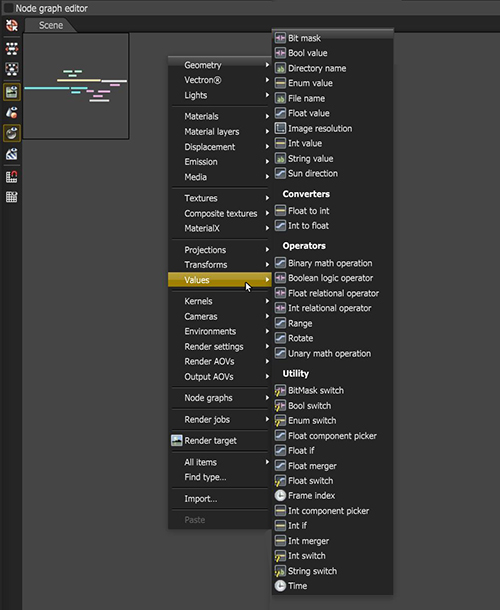

Figure 1: Accessing the Value node in the Node Graph Editor window.
General Value Nodes
Bit Mask - Returns a bit value.
Bool Value - Returns a boolean value of true if enabled.
Directory Name - Specifies a directory name.
Enum Value - Specifies an enumerator value.
File Name - Specifies a file name at a directory location.
Float Value - Specifies a float value for X, Y, Z.
Image Resolution - Specifies an image resolution with the option to lock the aspect ratio.
Int Value - Specifies integer values for X, Y, Z.
String Value - Spcifies a string value.
Sun Direction - Determines the sun direction using parameters found in the Daylight Environment node.
