The Color Vertex Attribute texture works in conjunction with the 3ds Max® Vertex Paint modifier. This texture node displays vertex paint data on native OctaneRender® Materials. A mesh object will need to have the Octane Geometry Properties modifier applied to successfully read the Map Channel properties correctly.

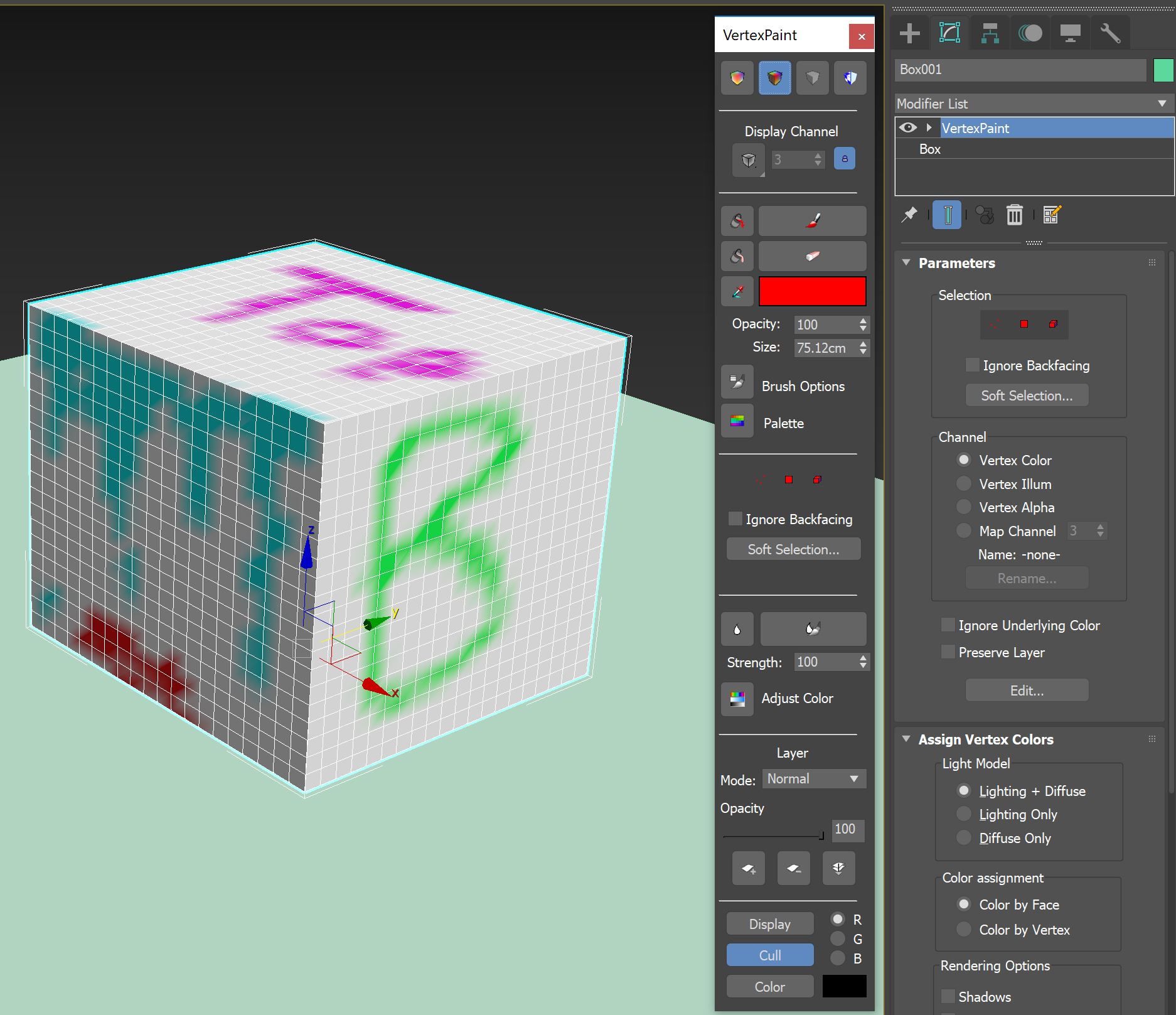

Figure 1: Using the Vertex Paint Modifier to paint color onto a cube surface

Scene objects display the Color Vertex Attribute node if you set them to Movable Proxy in the Octane Object Properties window (figure 2).

Figure 2: Setting an object to Movable Proxy

After painting the object surface with the Vertex Paint modifier, connect the Color Vertex Attribute node where appropriate in the object's shader node network (figure 3).

Figure 3: The Color Vertex Attribute node is mixed with a RGB Texture node

The Vertex Paint modifier's default Map Channel for storing the color data is 0. Specify this in the Color Vertex Attribute node's Name parameter.

Figure 4: Specifying the default MapChannel in the Color Vertex Attribute node
