Color Key
The Color Key texture node is used to key out a specified color in a connected texture map (figure 1).
|
|
Color Key
|

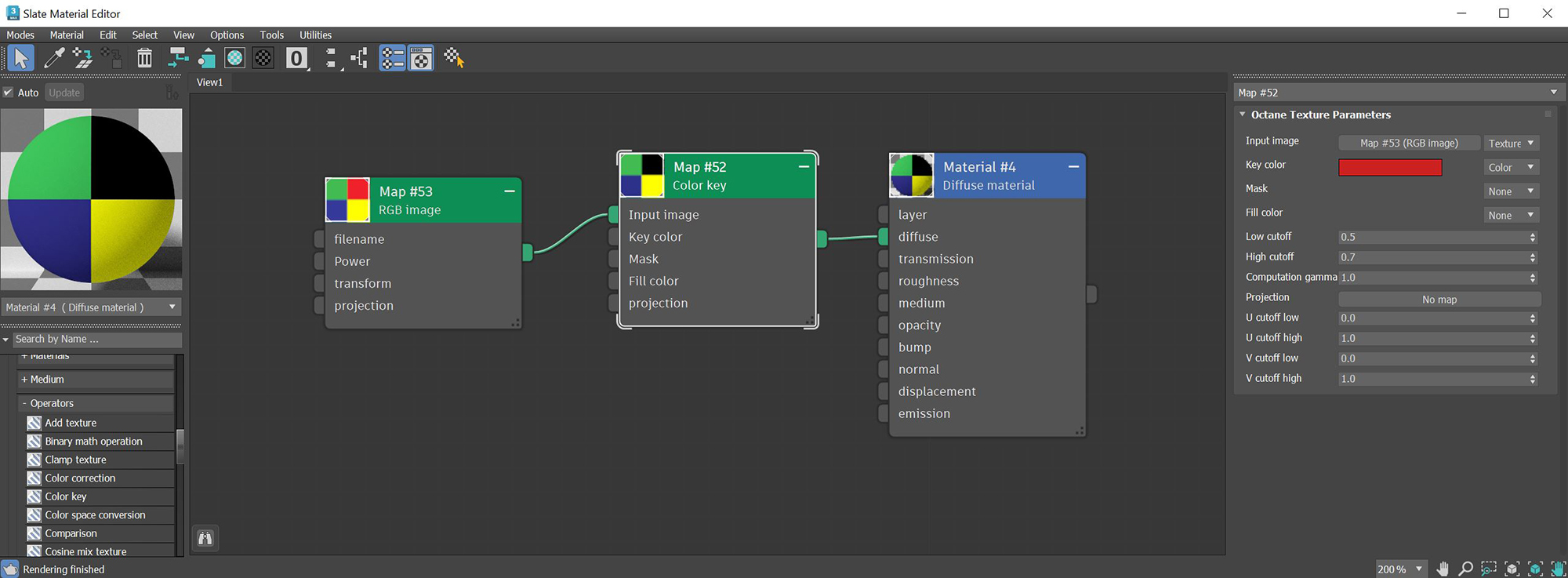

Figure 1: The Color Key node used to key out the red color on a connected texture map
Color Key Parameters
Input Image - Image to be keyed.
Key Color - The color to be keyed.
Mask - Garbage matte should be connected here.
Fill Color - The color to replace the keyed area.
Low/High Cutoff - The low and high cutoff for the color difference.
Computation Gamma - Adjusts the color range midtones before computing the difference.
Projection - Specifies the projection type to be used for this texture.
U Cutoff Low/High - Specifies the low and high edge of simple 2D cutoff in the U direction.
V Cutoff Low/High - Specifies the low and high edge of simple 2D cutoff in the V direction.
